Floor Shift Controls

1965-70 Heavy Duty Manual Trans.

1965-70 Tempest

1968-69 Firebird

1969-70 Grand Prix Standard



Illustrated Parts Break Down

1) Lever & Bracket assy., Trans. control - w/bucket seats Shifter assy., Trans. control (1967-68 exc. shift lever)

2) Lever & Bracket assy., Trans. control - w/bench seats Shifter assy., Trans. control (1967-68 exc. shift lever)

3) Knob, Gearshift lever - floor shift

4) Washer, Control lever to extension shim

5) Support, Control lever & bracket to extension

6) Support, Lever & bracket to support (1/2"-20)

7) Bolt, Support to extension (3/8"-16 x 3/4")

8) Washer, Lever & bracket to trans. extension (1/8")

9) Washer, Lever & bracket to trans. extension

10) Bolt, Lever & bracket to trans. extension (3/8"-16 x 1")

11) Support, Control rod to bracket (3/8"-16)

12) Lockwasher, Control rod to bracket (3/8")

13) Bushing, Control rods to levers (3/8" I.D. x 1/2" 0. D.)

14) Washer, Control rods to levers (31 32" O.D. x 17/32" ID)

15) Clamp, Control rods to levers (25/64" ID x 1 1/16" OD x 7/32")

16) Swivel, Control rods to levers (1-3/8" long x 5/8" dia.)


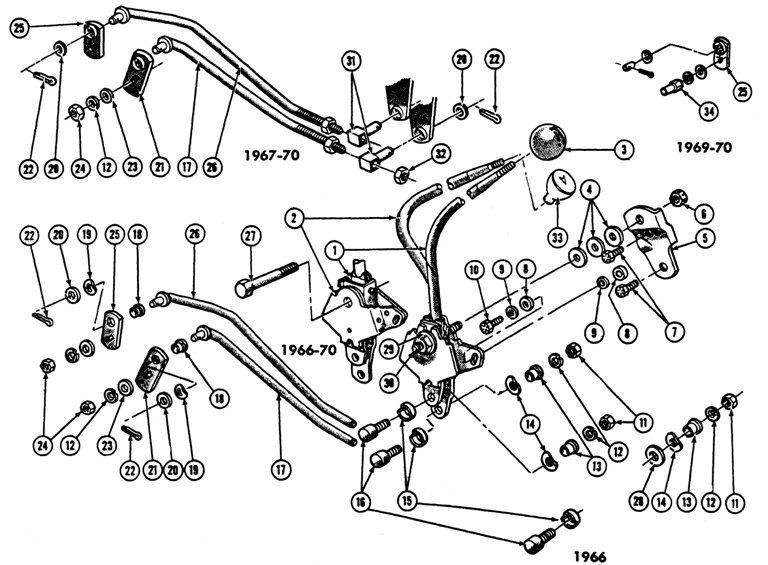

1968-69 Firebird Heavy Duty Manual Trans. Floor Shift Controls Exploded View

17) Rod, Gearshift Control - 1st & Reverse

18) Bushing, Cont. rod to control & levers (25/64" x 3/4"x .030)

19) Washer, Control rods to levers - spring

20) Washer, Control rods to levers (25/64" ID x 3/4"OD)

21) Lever, Trans. shifter - 1st & Reverse

22) Cotter pin, Control rods to levers (3/32" x 1")

23) Washer, Shifter lever to trans. (3/8" ID x 3/4" OD x 1/16")

24) Support, Shifter lever to trans. (3/8"-24)

25) Lever, Trans. Shifter - 2nd & 3rd

26) Rod, Gearshift control - 2nd & 3rd

27) Bolt, Lever & bracket assy. to Support (7/16"-14 x 2-3/4")

28) Washer, Control rods to levers (17/32" I. D. x 31/32"0. D.)

29) Washer, Control lever stud locating

30) Stud, Control lever mounting

31) Trunnion, Control rods to levers

32) Support, Control rods to trunnion (3/8"-16)

33) Knob, Gearshift Lever 34) Bolt, Lever to trans.



The exploded view illustrates individual part placement in the assembly.
