3 spd. Floor Shift Controls

1965-69 Tempest

1968-69 Firebird



Illustrated Parts Break Down

1) Knob, Trans. control lever.

2) Lever & Bracket assy., Trans. control

2) Shifter assy., Trans. control (1967-68 exc. shift lever)

3) Bolt, Support to extension (3/8"-16 x 5/8")



4) Support, Control lever & bracket

5) Bolt, Support to lever & bracket (3/8"-16 x 7/8")

6) Nut, Control rods to lever (3/8"-16)

7) Lockwasher, Control rods to lever (3/8")

8) Bushing, Control rods to lever

9) Washer, Control rods to levers (17/32" I.D. x 31/32"0. D.)

10) Washer, Control rods to levers (17/32" I.D. x 1-1/16" O.D. x 1/32")

11) Clamp, Control rods to levers (25/64" I.D, x 11/16" O.D. x 7/32")

12) Swivel, Control rods to levers

13) Rod, Trans. control - 1st & reverse

14) Rod, Trans. control - 2nd & 3rd

15) Washer, Shifter Lever to trans. (3/8" I.D. x 3/4" O. D. x 1/16")

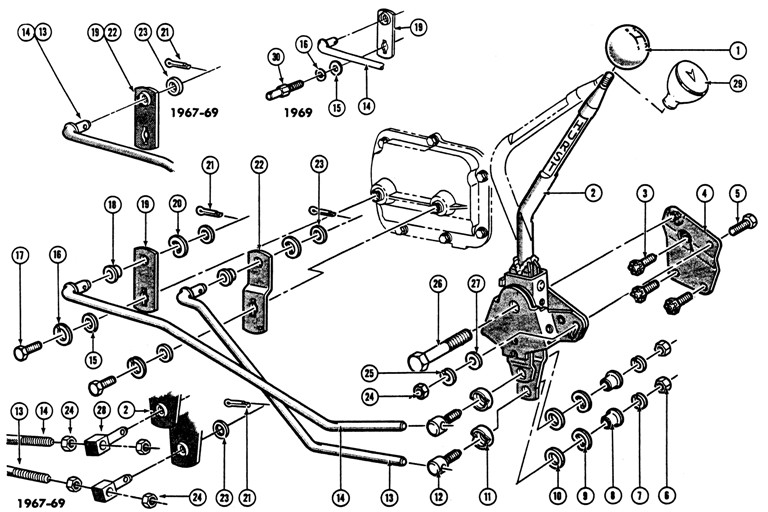

1968-69 Firebird 3 spd. Floor Shift Controls Exploded View

16) Lockerwasher, Shifter lever to trans. (3/8")

17) Bolt, Shifter lever to trans. (3/8"-16 x 1")

18) Bushing, Control rod to levers (25/64" x 3/4" x .030)

19) Lever, Trans. shifter - 2nd & 3rd

20) Spring Washer, Control rod to lever (13/32" I.D. x 4-9/64" O.D.x.010)

21) Cotterpin, Control rod to lever (3/32" x 1")

22) Lever, Trans. shifter - 1st & reverse

23) Washer, Control rod to lever (25/64" I.D. x 3/4" O.D.)

24) Nut, Support to lever and bracket (3/8"-16)

25) Lockerwasher, Support to lever & bracket (3/8")

26) Bolt, Lever & bracket to support (7/l6"-14 x 2-3/4")

27) Washer, Support to lever & bracket (13/32" I.D. x 53/64" O.D.)

28) Trunnion, Control rods to levers

29) Knob, Gearshift lever

30) Bolt, Trans. shifter lever (3/8"-16)

The exploded view illustrates individual part placement in the assembly.
