Pontiac Hydra-Matic (M-40)

Lower Gearshift Control1965-68

Illustrated Parts Break Down

1) Rod, Gearshift
Control

2) Swivel, Control Rods to Levers (1 3/8" Long- 5/8" Dia.)
3) Lever assy., Gearshift control cross shaft.
4) Nut, Range
selector lever to
trans. (3/8"-16)

5) Lever, Range
selector- outer

6) Cotter Pin, Control cross shaft lever to trans. lever (1/8" x 1")
7) Spring, Control
cross shaft lever
to trans. lever

8) Washer, Control
cross shaft lever to
trans. lever
(13/32" 1. D. x
47/64" O.D. x 1/6")
9) Bracket assy.,
G/Scontrol cross
shaft

10) Screw, Bracket
assy. to frame
(5/16"-18 x 3/4")

11) Nut, Control rod to cross shaft lever (3/8"-16)

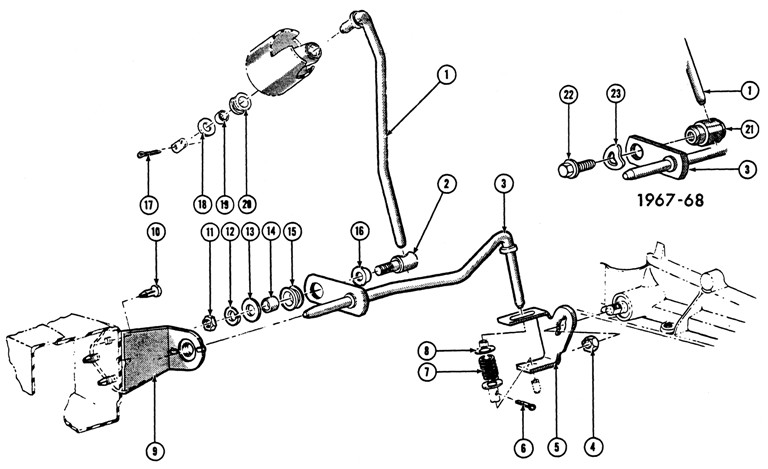

       1965-68 Pontiac Hydra-Matic (M-40) Exploded View
12) Lockwasher,
Control rod to cross
shaft lever (3/8")

13) Washer, Control rods to levers (25/64" I.D. x 3/4" OD)
14) Bushing, Control rods to levers (3/8" ID x 1/2" OD x 1/2")
15) Grommet, Rod
to cross shaft

16) Clamp, Control
rods to levers
(25/64" ID x
11/16"  OD x 7/32")

17) Cotter Pin,
Control rod to
shifter tube
(3/32" x 5/8")
18) Washer,
Control rods to
column assy.
& levers

19) Sleeve, Control rods to levers (5/16" ID x 7/16" OD x 3/8")
20) Bushing, Gearshift control rod to lever (7/16" ID x 13/16" OD x 5/16")
21) Clamp,
Gearshift control
swivel to lever

22) Screw, Gearshift control rod to lever (5/16"-18 x 7/16")
23) Washer, Gearshift control rod to lever (3/8" ID x 7/8" OD)


The illustrated parts break down illustrates individual part placement in the assembly.
