Pontiac 4 spd. Floor Shift Controls

1965-68



Illustrated Parts Break Down

1) Nut, Shifter lever to trans. (3/8"-24)

2) Bushing, Control rod to trans. lever (25/64" x 3/4")

3) Lockwasher, Shifter lever to trans. (3/8)

4) Washer, Shifter lever to trans.(13/32" LD. x 3/4" O.D x 1/16")

5) Lever, Trans. shifter - 1st & 2nd - 3rd & 4th

6) Clip, Gearshift control rods

7) Rod, Trans. control

8) Clip, Back-up lamp wire to shield

9) Retainer, Back-up lamp switch rod (3/32")

10) Bolt, Wire clip to case (5/16"-18 x 3/4")

11) Clip, Back-up lamp wire to trans

12) Rod, Back-up lamp switch

13) Bracket , Back-up lamp switch to trans

14) Lever & Bracket assy., Trans. control

15) Knob, Trans. control lever

16) Lever, Trans. shifter - reverse

17) Washer, Lever & bracket to Support(31/64" LD. x 7/8" OD x 1/16")

18) Lockwasher, Lever & bracket to support (7/16")

19) Lockwasher, Lever & bracket to support (3/8'')

20) Bolt, Lever & bracket to support (7/16"-14 x 3")

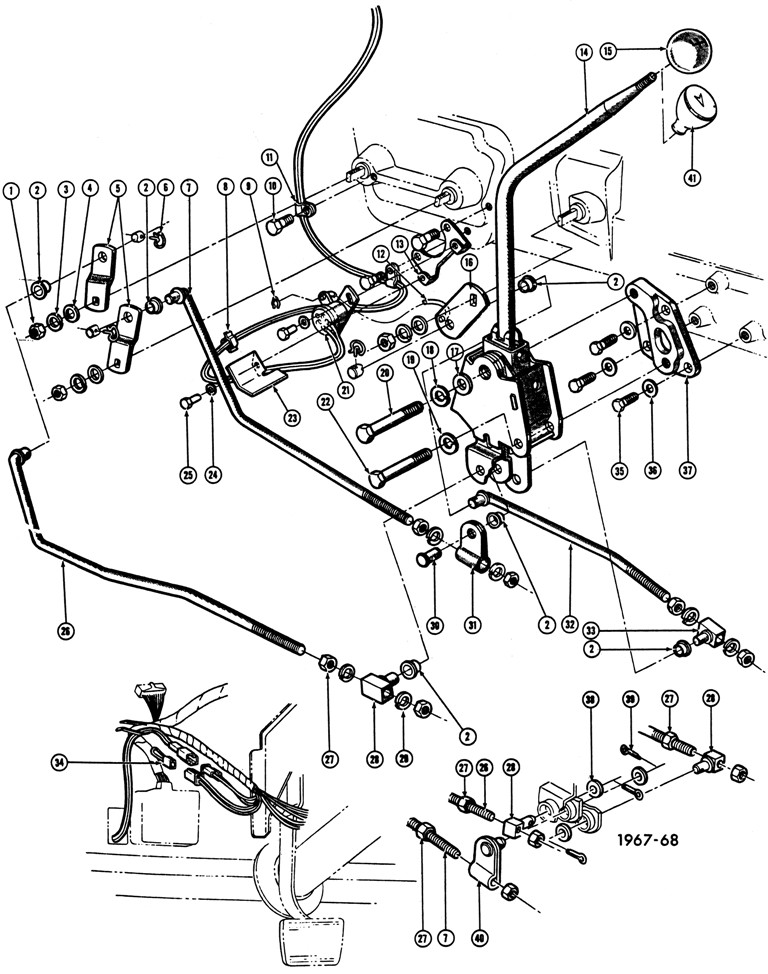

1965-68 Pontiac 4 spd. Floor Shift Controls Exploded View

21) Switch assy., Back-up lamp

22) Bolt, Lever & bracket to support (3/8"-16 x 3")

23) Shield, Back-up lamp switch

24) Lockwasher, Switch to bracket (#10 Ext.)

25) Screw, Switch to bracket (#10-32 x 1/2")

26) Rod, Trans. control - 3rd & 4th

27) Nut, Control rod and trunnion (3/8"-16)

28) Trunnion, Control rod - 3rd & 4th - reverse

29) Lockwasher, Control rod and trunnion (3/8)

30) Pin, Control Rod & trunnion to lever & bracket assy., (1st & 2nd)

31) Trunnion, Control rod - 1st & 2nd

32) Rod, Trans. control - reverse

33) Trunnion, Control rod - 3rd & 4th - reverse

34) Wire assy., Neutralizer switch jumper

35) Bolt, Support to extension (3/8"-16 x 7/8")

36) Washer, Support to extension (13/32" ID. x 47/64" OD x 1/16")

37) Support, Control lever & bracket

38) Washer, Control rod to lever (25/64" LD. x 3/4" OD)

39) Cotter Pin, Trunnion to shift lever (3/32" x 1")

40) Trunnion Pin assy., Trans. cont. rod to shifter levers

41) Knob, Gearshift lever



The exploded view illustrates individual part placement in the assembly.
