Tempest 4 spd. Transmission

1962-63

Illustrated Parts Break Down

1) Seal assy.,
Shifter selector
shaft

2) Shaft, Shift selector
3) Selector, shifter
4) Bolt, Shift selector (1/4"-28 x 3/4")
5) Gasket, Trans. cover
6) Cover, Trans. case
7) Gasket, Filler plug
8) Plug, Filler (7/8"-18 hex hd.)
9) Bolt & Lockwasher assy., Cover to case
(1/4.._20 x 5/8")
10) Plug, Third & fourth detent spring ret. (1/2"-20)
11) Gasket, Third & fourth detent spring ret. plug
12) Spring,
Detentball

13) Ball, Detent
(3/8" dia.)

14) Ball, Reverse inhibitor
15) Washer, Reverse inhibitor
16) Spring, Reverse inhibitor
17) Plug, Reverse inhibitor spring bore
18) Plug, Trans. drain (1/2" sq. HD plain)
19) Pin, Fork retaining (3/16" x 13/16" spring type)
20) Fork, Third & fourth shift
21) Pin, Fork retaining (3/16" x 13/16" spring type)
22) Shaft, Shifter third & fourth
23) Interlock, Shifter
24) Pin, Shifter
interlock

25) Shaft, Shifter
first & second

26) Interlock, Shifter
27) Shaft, Shifter reverse shift head
28) Fork, First & second shift
29) 1-2 clutch hub & keys
30) Sleeve, First speed gear
31) Synchronizer assy., First & second
32) Ring, Part of clutch assy.
33) Ring, First & second blocking
(31/64" thick 30 teeth)
34) Gear, First speed
35) Washer, First speed gear thrust
36) Ring, Rear bearing locating
37) Bearing, Main
shaft

38) Retainer, Rear bearing
39) Ring, Rear bearing retaining
40) Mainshaft
41) Ring, Part of clutch assy.
42) Ring, First 7 second blocking (31/64" thick 30 teeth)
43) Gear, Second speed
44) Bearing assy., Second speed gear thrust
45) Gear pkg., Third speed (inc. #88)
46) Ring, Third & fourth blocking
(7/16" thick 30 teeth)
47) 3-4 clutch hub & keys
48) Ring, 3 & 4 hub retainer snap

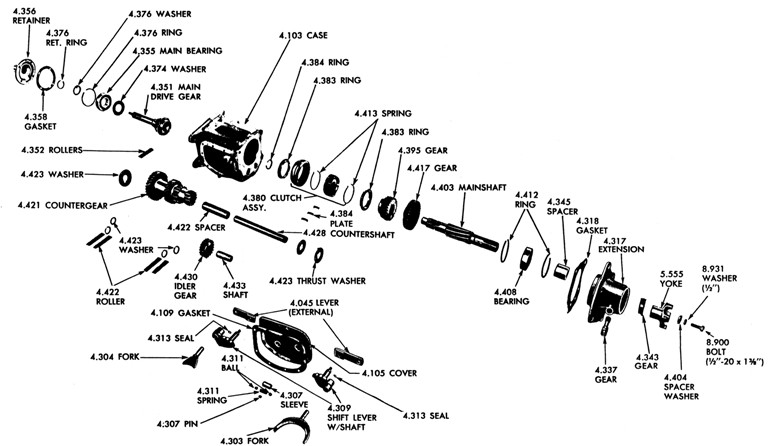

1962-63 Tempest 4 spd. Transmission Exploded View
49) Spacer, Rear
roller bearing

50) Synchronizer
assy, Third
& fourth

51) Ring, part of clutch assy.
52) Ring, third & fourth blocking
(7/16" thick 30 teeth)
53) Bearing, Main shaft front roller
54) Gear, Main drive trans.- clutch
55) Shaft, Reverse idler gear
56) Shaft, Shifter reverse
57) Fork, Reverse
58) Lever, Shift selector reverse
59) Gear, Reverse idler
60) Ring, Rear
bearing retainer
snap

61) Key, Reverse
idler shaft
(3/32" x 1/2")

62) Ring, Rear bearing retainer snap 63) Plug, Reverse inhibitor spring bore
64) Spring, Reverse inhibitor
65) Rod, Reverse inhibitor
66) Head assy, Reverse shift
67) Ball, Reverse shift detent (3/8" dia.)
68) Spring, Detent ball
69) Pin, fork retaining (3/16" x 13/16" spring type)
70) Washer,
counter gear
thrust

71) Countershaft,
Trans.
(8-31/64")

72) Washer, Countershaft bearing
73) Bearing, Trans. Countershaft
74) Spacer, Countershaft bearing
75) Gear, Countershaft 76) Washer, Counter gear thrust
77) Plug, First & second detent spring ret,
(1/2"-20 x 47/64") 78) Gasket, First & second detent spring ret.
79) Spring, First
& second shift
detent

80) Ball, Detent
(3/8" dia.)

81) Case, Transmission
82) Bearing, Trans. clutch gear 83) Ring, Clutch gear bearing retaining
84) Ring, Clutch gear bearing locating
85) Gasket, Front extension to trans.
86) Gasket, Trans. to carrier
87) Pin, Reverse shift lever pivot 88) Washer, 3rd. speed thrust


The illustrated parts break down illustrates individual part placement in the assembly.
