Starter Motor

1955-75

Illustrated Parts Break Down

1) Frame,
Commutator end

2) Holder,
Brush-insulated

3) Spring, Starter
motor brush

4) Pin, Brush
holder support
attaching
5) Lead, Motor
brush ground

6) Screw, Brush
 attaching
(#8-32 x 5/8")

7) Grommet, In
field frame

8) Screw, Field
lead to switch
9) Switch,
Solenoid

10) Coil, Shunt

11) Spring,
Plunger return

12) Plunger,
Solenoid
13) Lever, Drive
shift

14) Pin, Shift lever
        (3/16" x 7/8")

15) Shaft, Shift
lever

16) Housing,
Starter motor
drive

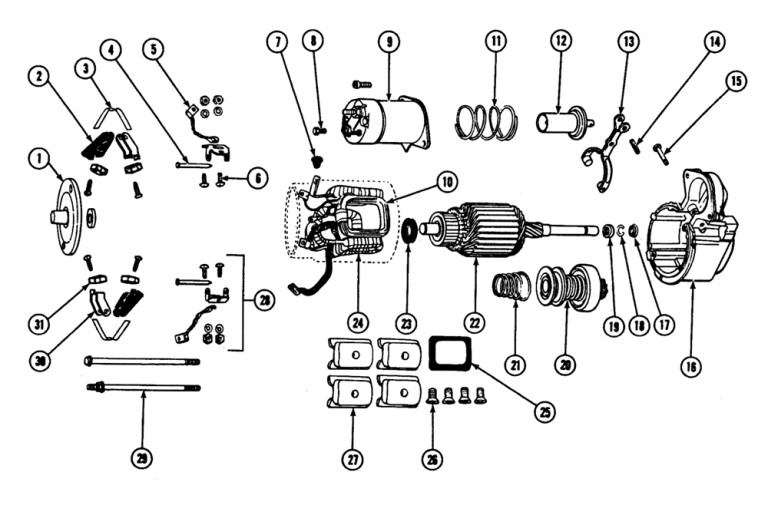

1955-75 Starter Motor Exploded View
17) Washer, Drive
end

18) Ring, Drive end
(Thrust)

19) Collar, Pinion
stop - drive end

20) Drive, Starter
motor
21) Spring, Shift
lever assist.

22) Armature,
Starter motor

 23) Washer,
Commutator end
(leather)

24) Coil, Field
(3-coils - upper)
25) Insulator,
Field coil

26) Screw,
Pole shoe

27) Shoe, Pole

28) Support,
brush holder
29) Bolt, Starter
motor thru

30) Holder,
Brush-ground

31) Brush,
Starter motor


The illustrated parts break down illustrates individual part placement in the assembly.
