HOLLY MODEL 2300 * 2300G * 2300MG

Carburetor

Illustrated Parts Break Down

1) Choke Plate
2) Valve Plate
3) Valve Stem
4) Choke Plate Cover
5) Choke Shaft Assembly
6) Fast Idle Pick-up Lever
7) Choke Lever & Swivel Assy.
8) Fast Idle Cam Lever 9) Choke Rod Lever & Bushing Assy. 10) Choke Cont. Shaft & Lever Assy. 11) Choke Plate Screw 12) Gov. Throt. Lever Screw 13) Throttle Lever Screw
14) Throttle Stop
Screw

15) Choke Lev. &
Pickup lever Swivel
Screw

16) Choke Brkt.,
Pick up Lever,
Choke & Hand
Throt. Cont.
Clamp Screw

17) Gov. Cov.
Assy. Screw & L.W.

18) Pickup Lev.
Brkt. Assy.
Screw & L.W

19) Fuel Pump Cov.
Assy. Scr. & L.W.

20) Gov. Diaph.
Cov. Assy. Screw
& L.W.

21) Pump Cam
Lock Screw & L.W.

22) Anti-backfire
Piston Spring
Screw

23) Fuel Bowl to
Main Body Screw

24) Throttle Body
Screw & L.W.
25) Dashpot Brkt.
Scr. & L.W.

26) Throttle Plate
Screw

27) Fast Idle Cam
Lever Screw

28) Fast Idle Cam
Lever & Driver
Assy. Scr. & L.W.

29) Pump Oper.
Lever Adj. Screw

30) Throt. Oper.
Shaft Housing

31) Pump
Discharge Nozzle
Screw

32) Choke Wire &
Hand Throttle
Control Bracket
Screw

33) Fast Idle Cam
Plate Screw & L. W.

34) Fast Idle Pin
Adj. Screw

35) Gov. Housing
Assy. Screw

36) Fuel Valve
Seat Lock Screw
37) Throttle Body
Screw (Special)

38) Choke Cont.
Lever Swivel
Screw

39) Gov. Cov.
Assy.
Screw & L.W.

40) Main Body &
Plugs Assy.

41) Float Adj. Plug

42) Fuel Level
Check Plug

43) Anti backfire
Plug

44) Fuel Level
Check Plug
Gasket

45) Float Adj. Plug
Gasket

46) Anti-backfire
Plug Gasket

47) Fuel Inlet
Fitting Gasket

48) Fuel Valve
Seat Gskt. or
"O" Ring Seal

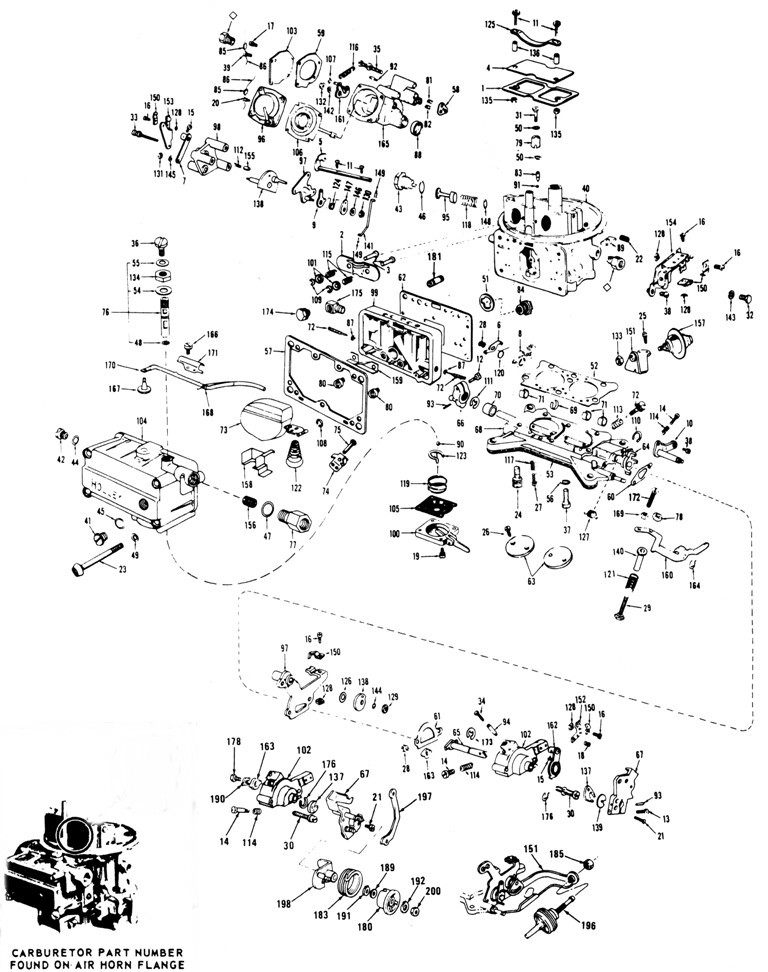

HOLLY MODEL 2300 * 2300G * 2300MG Exploded View
49) Fuel Bowl
Screw
Gasket

50) Pump
Discharge Nozzle
Gasket

51) Power Valve
Body Gasket

52) Throttle Body
Gasket
53) Flange Gasket 54) Fuel Valve Seat Adj. Nut Gasket 55) Fuel Valve Seat Lock Screw Gasket 56) Throttle Body Screw Gasket 57) Fuel Bowl Gasket 58) Gov. to Main Body Gasket 59) Gov. Body Cov. Gasket 60) Throt. Shaft Hsg. Backup Plate Gskt. 61) Throt. Oper. Shaft Housing Gasket
62) Metering Body
Gasket

63) Throttle Plate

64) Throt. Lev. &
Shaft Assy.

65) Throt. Oper.
Shaft & Lev.
Or Driver Assy.

66) Gov. Throt.
lever & Ball Assy.

67) Throttle Lever
and or Shaft Assy.

68) Throt. Body
& Shaft Assy.

69) Throttle Shaft
Bushing

70) Throttle Shaft
Bearing

71) Throttle Shaft
Bushing

72) Idle Adjusting
Needle

73) Float & Hinge
Assembly

74) Float Hinge
Adapter

75) Float Lever
Shaft
76) Fuel Inlet
Valve & Seat Assy.

77) Fuel Inlet
Fitting

78) Pump Oper.
Lever Screw
Fitting or Nut

79) Pump
Discharge Nozzle

80) Main Jet

81) Governor
By-Pass Jet

82) Governor
By-pass Jet

83) Pump
Discharge
Needle Valve
or Pump Check
Ball Weight

84) Power Valve
Assembly

85) Governor
Cover Wire Seal

86) Governor
Cover Safety
Wire

87) Idle Needle
Seal

88) Governor
Body Seal
89) Choke Rod
Seal

90) Pump Inlet
Check
Ball or Valve

91) Pump
Discharge Check
Ball

92) Governor
Spring Pin
(Long)

93) Governor &
Throttle Lever
Pin

94) Fast Idle Pin

95) Anti-backfire
Piston

96) Gov. Diaph.
Assy. Cover

97) Back-up Plate
& Bearing Assy.

98) Fast Idle Cam
Plate

99) Main Metering
Body & Plugs Assy.

100) Fuel Pump
Cover Assy.
101 to 201>


The illustrated parts break down illustrates individual part placement in the assembly.
