PONTIAC OIL PUMP

V8 1955-75

Illustrated Parts Break Down

1) Bolt, Cover to
body
(5/16"-18x 3/4)

2) Lockwasher,
Bolt to cover
(5/16")

3) Cover
4) Shaft, Gear
drive

5) Pin, 1/8" x 1 1/4"

6) Ball, Pressure
relief 5/8" dia.

7) Spring, Pressure
relief
8) Gasket, Relief
 valve

9) Retainer, Relief
valve

10) Screen, Oil pick
up

11) Shaft, Pump
drive

12) Body, Pump

13) Shaft, Driven

14) Gear, Driven

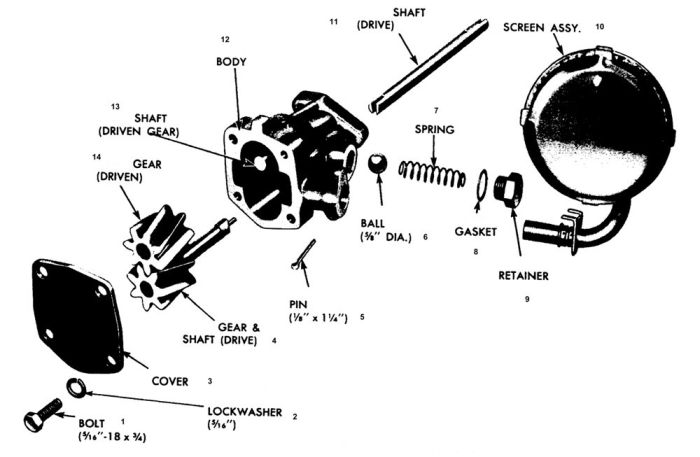

1955-75 OIL PUMP Exploded View



The illustrated parts break down illustrates individual part placement in the assembly.
