  1) Retainer, Master cylinder
          cover
  2) Cover, Master cylinder
          reservior
  3) Diaphragm, Master cylinder
          reservior
  4) Cup, Piston pumping
          (primary)
  5) Piston,  Primary
  6) Cup, Master cyl piston
          (secondary)
  7) Seal, Master cyl to vacuum
          cylinder
  8) Retainer, Master cyl to
         vacuum cyl seal
  9) Ring, Piston retaining
          1.125" dia.
10) Cup,  Secondary piston
          pressure
11) Piston,  Secondary
12) Protector, Piston cup
13) Cup, Piston pumping
          (primary)
14) Retainer, Cylinder cup
15) Spring, Secondary piston
          cup return
16) Bolt, Secondary piston
          stop
17) Seal, Secondary piston
          stop bolt
18) Seat, Outlet tube
19) Valve, Check
20) Spring, Check valve
21) Body, Master cylinder






Bendix Brake Master Cylinder
1967-75

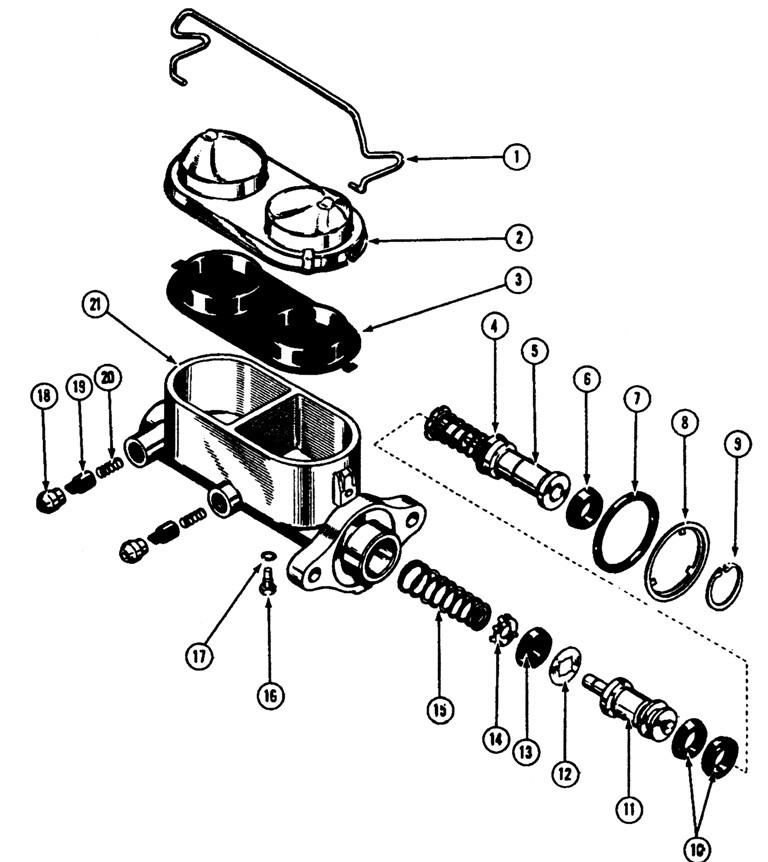

Bendix Brake Master Cylinder Exploded View


The illustrated parts break down illustrates individual part placement in the assembly.
