  1) Nut, Air cleaner
      (1/4"-20 wing)
  2) Cleaner/Silencer, Carb air
  3) Gasket, Air cleaner to carb
  4) Stud, Air cleaner to carb
  5) Bolt, Carb to manifold
      (5/16"-18 x 1 1/4")
  6) Carburetor assy
  7) Gasket, Carb to manifold
  8) Stud, Carb to manifold
      (5/16"-18 x 2 1/8"hollow)
  9) Nipple, Crankcase vent
       hose to manifold
       (1 1/16"- press in)
10) Elbow, Crankcase vent
       hose to manifold
11) Pipe/Stove assy, Carb
       air heater
12) Hose, Crankcase vent
       connector to fitting
13) Hose, Crankcase vent
       connector to fitting
       (5/32"ID x 3 1/4")
14) Connector, Crankcase
        vent hose
15) Manifold, Intake
16) Seal, Manifold to timing
       cover (5/8"ID x 1"OD")
17) Bolt, Bracket/manifold to
       head(3/8"-16 x 1 3/8")
18) Bolt, Push rod cover to
       block(5/16"-18 x 2 1/2")
19) Gasket, Push rod cover
       to block (5/16"-round)
20) Bolt, Push rod cover to
       block (5/16"-18 x 2")
21) Cover, Valve push rod
22) Gasket, Valve push rod
       cover
23) Pump assy, fuel
24) Washer, Pump to timing
       cover
25) Bolt, Pump to timing
       cover (3/8"-16 x 1 1/4")
26) Gasket, Fuel pump flange
27) Gasket, Exhaust manifold
28) Manifold, Exhaust
29) Pin, Heat control valve
       Anchor
30) Thermostat, Heat control
       valve
31) Baffle, Exhaust manifold
       thermostat
32) Bushing, Heat control
       valve
33) Valve, Manifold heat
       control
34) Bolt, Manifold to head
       (3/8"-16 x 2 1/2")
35) Lock, Exhaust manifold
       bolt
36) Spacer, Manifold heat
       control valve
37) Shaft, Manifold heat valve
38) Bracket, Heat control valve
       stop
39) Pad, Manifold heat control
       valve stop
40) Grommet, Crankcase vent
41) Valve, Crankcase vent
42) Tube, Intake manifold
        choke heat (internal)
43) Gasket, Intake manifold
44) Retainer, Intake manifold
       gasket
45) Bracket, Crankcase vent
       hose
46) Washer, Manifold to head
       (13/32"  ID x 3/4" OD)
47) Hose, Crankcase outlet
       valve to connector
       (5/16" ID x 29")
48) Bolt, Intake manifold to
       head (3/8"-16 x 1 1/2")
49) Bushing, Throttle control
       cross-shaft engine bracket
50) Bracket assy, Throttle
       control cross-shaft engine
51) Washer, Bracket to head
       (13/32" ID x 3/4" OD)
52) Bolt, Bracket to head
       (3/8"-16 x 3/4")
53) Bolt, Bracket to head
       (3/8"-16 x1 1/2")
54) Bracket, Throttle return
       spring mounting
55) Bolt, Mounting bracket to
       manifold (5/16"-18 x 5/8")
56) Nut, Carb to manifold
       vacuum stud (5/16"-18)
57) Switch, Thermostatic
       vacuum
58) Manifold, Crossover exh.
       choke coil heat
       (Ram Air/S.D)
59) Valve, Thermostatic purge



1967-75 V8 Fuel/Exhaust (EXC. 1975 "X" )

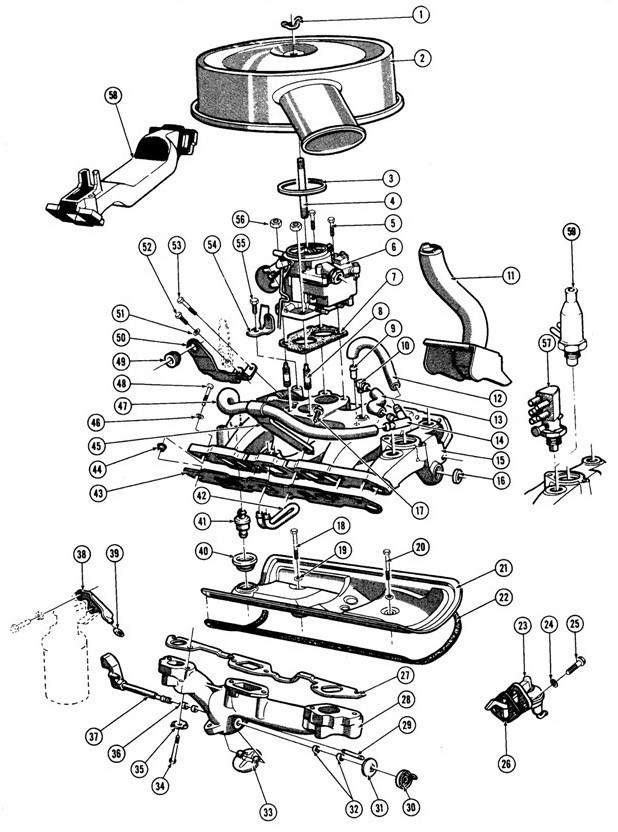

1967-75 V8 Fuel/Exhaust (EXC. 1975 "X" ) Exploded View


The illustrated parts break down illustrates individual part placement in the assembly.
