Click the bold underline to BUY
or look at a picture of the part.


1) Bolt, Outlet fitting to intake
       (3/8"-16 x 1 5/16" spec)
  2) Washer,
       (.401 ID x .764 OD)
  3) Fitting, Intake manifold
       outlet
  4) Gasket, Intake manifold
        outlet
  5) Thermostat, Water temp
  6) Cap, Oil filler
  7) Rod, Oil level indicator
  8) Adapter, Oil filter to block
  9) Screw, Oil filter adapter to
       block (3/8"-16 x 2"-cap)
10) Bolt, Oil filter to block
       (3/8"-16 x 1 1/4")
11) Lockwasher, Oil filter to
        block (3/8")
12) Washer, Oil filter to block
13) Bolt, Adapter to block
       (38"-16 x 2)
14) Lockwasher, Adapter to
       block    (3/8")
15) Washer, Adapter to block
16) Switch, Oil pressure
17) Element, Oil filter
18) Filter assy, Filter to block
19) Gasket, Filter to block or
       adapter
20) Tube, Oil level
       indicator-lower
21) Shaft, Oil pump drive
22) Gasket, Oil Pump to block
23) Pump assy, Oil
24) Bolt, Oil Pump to block
       (3/8"-16 x 1 1/2")
25) Gear-shaft, Oil pump drive
26) Cover, Oil pump body
27) Bolt, Oil pump Cover to
       body (5/16"-18 x 3/4")
28) Gasket, Oil pan
29) Bolt, Oil pan to block
30) Pan, Engine oil
31) Screw, Oil pan drain
32) Gasket, Oil pan drain screw
33) Baffle, engine oil
34) Bolt, Baffle to bearing cap
       (5/16-18 x 3/4")
35) Lockwasher, Baffle to cap
36) Shaft, Oil pump drive gear
37) Screen, Oil pump
38) Ball, Oil pressure regulator
39) Spring, Pressure regulator
40) Retainer, Regulator spring
41) Tube, Oil level indicator
        block to baffle
42) Housing, Water pump
43) Divider, Water pump
44) Gasket, pump to timing
        cover
45) Pump, Water
46) Stud, Pump to cover
 (5/16"-24 x 5/16"-18 x 1 1/2")
47) Nut, Pump to cover
       (5/16"-24)
48) Hub, Pump to fan
49) Pulley, Pump/fan
50) Bolt, Fan to clutch
       (5/16"-18 x 5/8")
51) Clutch assy, Engine fan fluid
52) Bolt, Fluid clutch to pump
       shaft flange
       (5/16"-24 x3/4")
53) Bolt, Fan to pump flange
       (5/16"-24 x 3 1/4")
54) Fan, Engine
55) Spacer, Engine fan
56) Bolt, Pump to timing cover
       (5/16"-18 x 1 1/8")
57) Bolt, Pump to timing cover
       (5/16"-18 x 1 3/4")
58) Washer, Outlet Fitting to
       intake (.401 ID x .734 OD)
59) Bolt, Outlet Fitting to
        intake (3/8"-16 x 1")
60) Housing, Water pump
        internal

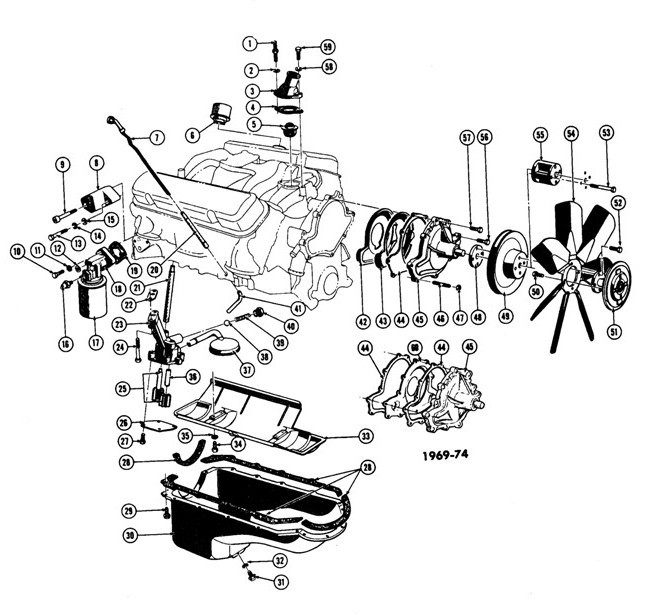

1967-75 V8 COOLING/OILING (EXC. 1975 "X" )

1967-75 V8 COOLING/OILING (EXC. 1975 "X" ) Exploded View


The illustrated parts break down illustrates individual part placement in the assembly.
