DODGE

Body Plate Identification

1960 - 1961 - 1962 - 1963 - 1964 - 1965 - 1966 - 1967 - 1968 - 1970 - 1971 - 1972 - 1973 - 1974 - 1975
Wanted pictures of body plates

1969

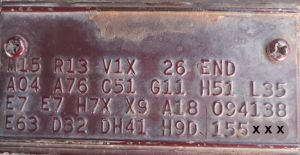

Location: On a plate attached to the fender shield under the hood.
Body Code: Make, Class, Body Style DH23
Engine Code: Engine Installed E24
Transmission: Tranny Installed 6
Shipping Order #: Scheduled Production Month/Date 301
Number: Production Sequence 00001
Trim: Trim Color and Material Used H1Q
Paint: Lower and Upper Body Color 8 AB1
UBS: Upper door frame and accent stripe colors. S

Style
Monaco Dart GTS
Code Body Style Code Body Style
DH23 1, 2 2 dr. Hardtop LP23 1 2 dr. Hardtop
DH41 1, 3 4 dr. Sedan LP27 1 Convertible
DH43 1, 3 4 dr. Hardtop Coronet 440
DH45 1 6-Pass 4 dr. Wagon WH21 2 dr. Coupe
DH46 1 9-Pass 4 dr. Wagon WH23 2 dr. Hardtop
Polara WH41 4 dr. Sedan
DL23 1 2 dr. Hardtop WH45 6-Pass 4 dr. Wagon
DL27 1 2 dr. Convertible WH46 9-Pass 4 dr. Wagon
DL41 1 4 dr. Sedan Coronet Deluxe
DL43 1 4 dr. Hardtop WL21 2 dr. Coupe
DL45 1 6-Pass 4 dr. Wagon WL41 4 dr. Sedan
DL46 1 9-Pass 4 dr. Wagon WL45 2-Seat 4 dr. Wagon
Polara 500 Coronet Super Bee
DM23 1 2 dr. Hardtop WM21 1 2 dr. Coupe
DM27 1 2 dr. Convertible WM23 1 2 dr. Hardtop
Dart Swinger Coronet 500
LL23 2 dr. Hardtop WP23 2 dr. Hardtop
Dart WP27 2 dr. Convertible
LL41 4 dr. Sedan WP41 4 dr. Sedan
Dart Custom WH45 6-Pass 4 dr. Wagon
LH23 2 dr. Hardtop WH46 9-Pass 4 dr. Wagon
LH41 4 dr. Sedan Coronet RT
Dart GT WS23 1 2 dr. Hardtop
LP23 2 dr. Hardtop WS27 1 2 dr. Convertible
LP27 Convertible Charger
Dart Swinger 340 XP29 4 2 dr. Hardtop
LM23 1 2 dr. Hardtop XS29 1, 9 2 dr. Hardtop
  Charger 500/Daytona
XX29 1 2 dr. Hardtop

Engine
Code Engine Code Engine
E06 Special 6 Cyl. E55 V8-340 4 Bar Carb.
E08 Special 8 Cyl. E61 V8-383 2 Bar Carb.
E11 4-170 1 Bar Carb. E63 V8-383 4 Bar Carb.
E24 6-225 1 Bar Carb. E74 V8-426 2-4 Bar Carb Hemi. Hi. Perf.
E25 6-225 1 Bar Carb. E85 V8-440 4 Bar Carb.
E31 V8-273 2 Bar Carb. E86 V8-440 4 Bar Carb. Hi. Perf.
E44 V8-318 2 Bar Carb.

Transmission
Code Transmission Code Transmission
D11 3-Speed Manual D31 3-Speed Auto
D12 3-Speed Manual D32 3-Speed Auto
D13 3-Speed Manual HD D34 3-Speed Auto HD
D21 4-Speed Manual D41 Clutch HD
  D49 Special Order Transmission

Shipping Order Number
Code Month Code Month
1 January 7 July
2 February 8 August
3 March 9 September
4 April A October
5 May B November
6 June C December

Trim
Charger/Charger RT Coronet Deluxe
Code Color Code Color
C5X,C6X Black 6 L1B Blue 5, 6
C6D Blue 6 L1L Champagne 6
C6G Green 6 L2B,M2B Blue 6
C6R Red 6 L2T,M2T Tan 6
C6T Tan 6 L2X,M2X Black 6
C6W White 6 Polar/Polar 500
CRD Blue 5, 6 L1B Blue 5, 6
CRG Green 5, 6 L1G Green 5, 6
CRT Tan 5, 6 L1Y Gold 5, 6
CRX Black 5, 6 L1X Black 5, 6
Dart/Swinger/Swinger 340 L2B,M6B Blue 6
D2B,L2B Blue 6 L2G,M6G Green 6
D2T,L2T Tan 6 L2T,M6T Tan 6
D2XL2X Black 6 L2X,M6X Black 6
Coronet 440 L2W,M6W White 6
D2D Dark Blue 6 Dart GT/GTS
D2G,H2G Dark Green 6 P2B,P6B Blue 6
D2T,H2T Tan 6 P2R,P6R Red 6
D2X,H2X Black 6 P2X,P6X Black 6
H1B Blue 5, 6 P2W,P6E,P6W White 6
H1G Dark Green 5, 6 P6G Green 6
H1T Tan 5, 6 P6Y Gold 6
H1X Black 5, 6 Coronet 500/Coronet RT
H1Y Gold 5, 6 P1E Gold 5, 6
H2B Blue 6 P2D,P6D,M6B Blue 6
H2C,H2W White 6 P2G,P6G,M6G Green 6
H2R Red 6 P2T,P6T,M6T Tan 6
Dart P2W,P6W White 6
H1B Blue 5, 6 P2X,P3X,M6X Black 6
H1L Champagne 5, 6 P3D Dark Blue 6
H1T Tan 5, 6 P3G Dark Green 6
H1X Black 5, 6 P3Y Gold 6
H2B Blue 6 P6C,P6F,P6V White 6
H2C,H2W White 6 P6R,M6R Red 6
H2G Green 6 M6C,M6F,M6C White 6
H2R Red 6
H2T Tan 6
H2X Black 6
Monaco
H1B Blue 5, 6
H1G Green 5, 6
H1L Champagne 5, 6
H1X Black 5, 6
H1Y Gold 5, 6
H4D,H7B Blue 6
H4G,H6G,H7G Green 6
H4T,H8T Tan 6
H4W,H6W White 6
H4X,H6X Black 6
H4Y,H6Y Gold 6
H7X,H8X Black 6
L1Q Turquoise 5, 6

PAINT
Code Color Code Color
A4 Silver Metallic L1 Beige
B3 Light Blue Metallic R4 Bright Red
B5 Bright Blue Metallic R6 Red
B7 Medium Blue Metallic T3 Light Bronze Metallic
F3 Light Green Metallic T5 Copper Metallic
F5 Medium Green Metallic T7 Dark Bronze Metallic
F6 Bright Green Metallic W1 White
F8 Dark Green Metallic X9 Black
G5 Bright Turquoise Metallic Y3 Cream
Y2 Yellow Y4 Gold Metallic
Paint Chip Palette



1- 8 Cyl. Engine only in
    these models.

2- Option 500
3- Option Brougham

4- Option SE

5- Cloth
6- Vinyl

7- Dart only
8- Number indicates
    Two-tone,Sports-tone,
     Convertible top, etc..
If there are any omissions or errors please let us know. Thank you
