  1) Plug, Valve rocker cover
      Neoprene (1 5/16" O.D.)
  2) Cover, Rocker arm
  3) Bolt, Rocker arm cover
  4) Gasket, Rocker arm cover
  5) Baffle, Rocker arm cover
  6) Nut, Baffle to cyl. head
       (3/8-16)
  7) Clip, Rocker arm baffle
       support
  8) Lock, Valve spring cup
  9) Cup, Valve spring
10) Seal, Valve guide
11) Shield, Valve Spring
12) Spring, Valve - outer
13) Spring, Valve - inner
14) Plug, Head A.I.R. gallery
       (3/8" Sq. headless)
15) Plug, Head core hole
       (1 3/8") "freeze out plug"
16) Bolt, Head ( 1/2"-13 x 3/8")
17) Plug, Head oil hole (21/64")
18) Bolt (Stud), Head
       (1/2"-13 x 2 3/16")
19) Bolt, Head (1/2"-13 x 4")
20) Spacer, Head bolt
       (17/32" ID x 1" OD x 3/8")
21) Bolt, Head
       (1/2"-13 x 2 3/16")
22) Valve, Intake
23) Valve, Exhaust
24) Head, Clyinder
25) Plug, Head A.I.R. Gallery
       (3/8" Sq. headless)
26) Plug, Head core hole
       (1 3/8") "freeze out plug"
27) Gasket, Head
28) Pin, Head locating Dowel
       (5/16" x 11/16")
29) Lifter, Valve
30) Guide, Push rod (Type 2)
31) Rod, Push
32) Plug, L.H. Head core hole
       (1 3/16")
33) Guide, Push rod (Type 1)
34) Stud, Rocker arm ball
35) Bolt, Guide to head
       (5/16" -18 x 3/4")
36) Fitting, Heater hose to head
37) Stud, Rocker arm ball
       (.005 O.S.)
38) Arm, Rocker
39) Ball, Rocker arm
40) Nut, Rocker arm
41) Bolt, Head
       (1/2"-13 x 3 5/8")




1967-75 V8 CYLINDER HEAD (EXC. 1975 "X" )

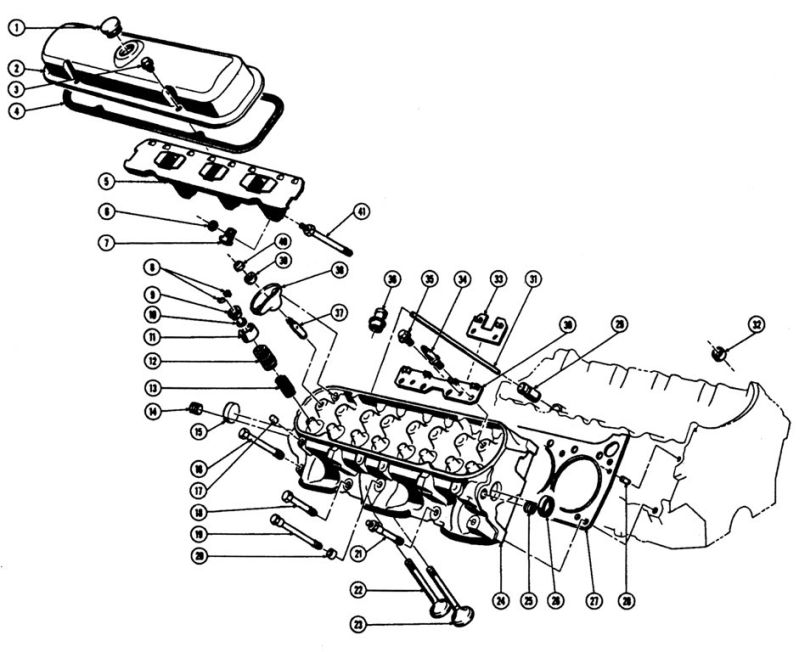

1967-75 V8 CYLINDER HEAD (EXC. 1975 "X" ) Exploded View


The illustrated parts break down illustrates individual part placement in the assembly.
