Illustrated Parts Break Down



Illustrated Parts Break Down


  1) Bracket, Brake pedal
  2) Nut, lock (7/16"-14)
  3) Bolt, clutch pedal bracket
       (3/8"-16 x 1")
  4) Washer (13/32")
  5) Screw (1/4"-14 x 5/8")
  6) Bracket, Clutch/pulley
  7) Bushing, Clutch pedal shaft
  8) Washer (13/32")
  9) Lockwasher (3/8")
10) Nut (3/8"-16)
11) Spacer, Clutch pedal
(7/16"ID x 5/8" ODx 1 3/4"OL)
12) Washer,
 (13/32" x 1 1/4" x1/8")
13) Pulley, Clutch cable
14) Sleeve, Clutch pulley
15) Bolt, (3/8"-16 x 1 3/8")
16) Cable, Clutch
17) Retainer, Clutch Cable
18) Washer, (21/64")
19) Bolt,  (7/16"-14 x 4 1/2")
20) Washer, (7/16")
21) Cover, Pedal
22) Pedal, Clutch
23) "O" Ring, Clutch cable
       (3/8")
24) Wire, Instrument panel
25) Spring, Clutch fork return
26) Grommet, Clutch fork
       spring
27) Screw, Shield to housing
28) Shield, Clutch fork
29) Pin, Cable to fork
30) Fork, Clutch release
31) Clip, (1/2")
32) Screw (1/4"-14 x 3/4")
33) Nut, 5/16"-18)
34) Lockwasher (5/16")
35) Switch, Neutral start
36) Bracket, Neutral switch
37) Bumper, Clutch pedal
38) Pin, Pedal to cable


Clutch Linkage
1975 "H"

Illustrated Parts Break Down

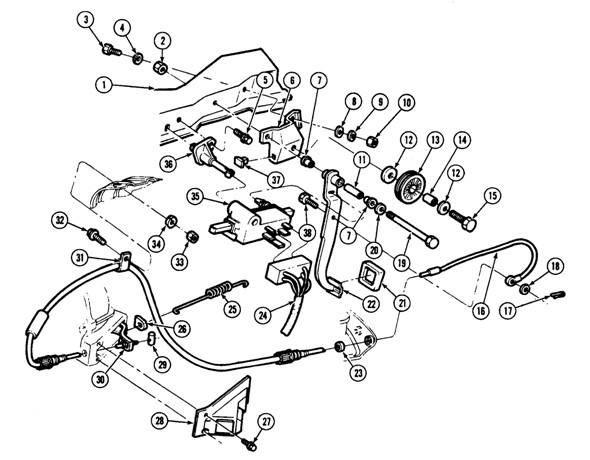

1975 "H" Pontiac Clutch Linkage Exploded View


The illustrated parts break down illustrates individual part placement in the assembly.
