Illustrated Parts Break Down



Illustrated Parts Break Down


  1) Bearing, Clutch pilot
  2) Flywheel
  3) Lockwasher, flywheel to
      crankshaft (7/16" external)
  4) Bolt, Flywheel to crank
  5) Plate, Clutch driven
  6) Plate, Clutch pressure
       with cover
  7) Plate, Clutch pressure
  8) Cover, Clutch
  9) Spring, Pressure Plate
       Retracting
10) Lockwasher, Spring to cover
        (5/16")
11) Bolt, Retracting spring
       (5/16"-18 x 7/8")
12) Lockwasher, Cover & plate
       (5/16")
13) Bolt, Cover & plate
       (5/16"-18 x 3/4")
14) Stud, Clutch fork ball
15) Housing, Flywheel & clutch
16) Bolt, Housing to block
       (3/8"-16 x 1 3/8")
17) Nut, Ball stud (1/2"-13)
18) Cap, Ball stud
19) Gasket, Release bearing
       support guide
20) Gasket, Trans to clutch
       housing
21) Spring, Clutch fork pull back
22) Grommet, Clutch fork pull
       back spring
23) Shield, Clutch housing side
24) Screw, Side shield
       (1/4"-20 x 7/16")
25) Bearing, Clutch throw out
26) Fork, Clutch release
27) Cover, Clutch housing
28) Bolt, Cover to housing
       (1/4"-20 x 7/16")
29) Absorber, Clutch fork


1975 "H" Clutch
Illustrated Parts Break Down

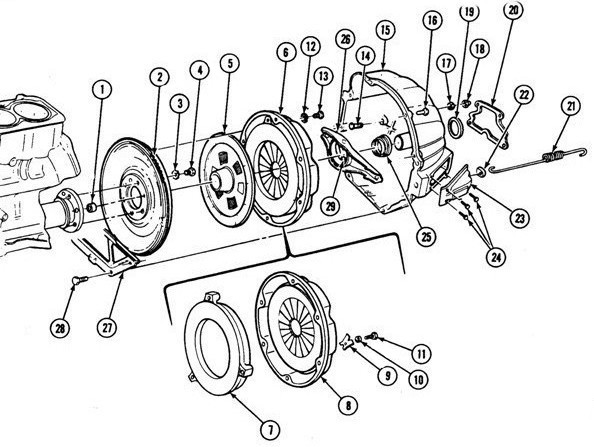

1975 "H" Pontiac ClutchExploded View


The illustrated parts break down illustrates individual part placement in the assembly.
