Illustrated Parts Break Down


  1) Cover, Valve rocker arm
  2) Gasket, Valve rocker arm
  3) Nut, Rocker arm adjustment
  4) Ball, Rocker arm
  5) Arm, Rocker
  6) Spark plug
  7) Gasket, Spark plug
  8) Bolt, Cylinder head
  9) Head
10) Gasket, Head
11) Nut, Manifold clamp stud
12) Gasket, Exhaust to intake
        manifold
13) Stud, Carb to manifold
       (3/8"-16 x 24 x 1 9/32")
14) Manifold, Intake
15) Clamp, Intake-exhaust
       manifold/ exhaust ports
16) Stud, Intake-exhaust
       manifold clamp
17) Gasket, Intake-exhuast
       manifold
18) Manifold, Exhaust
19) Stud, Exhaust manifold to
       intake manifold
20) Stud, Exhaust manifold to
       exhaust pipe flange
21) Clamp, intake-exhaust
        manifold
22) Bolt, Exhaust manifold clamp
       (3/8"-16 x 2 1/2")
23) Rod, Valve push
24) Valve, Exhaust
25) Valve, Intake
26) Gasket, Thermostat housing
27) Washer, Housing to head
(13/32"ID x 47/64" OD x 1/16")
28) Bolt, Housing to head
       (3/8"-16 x 1")
29) Plug, Thermostat housing
30) Housing, Thermostat
31) Thermostat, Water outlet
32) Gasket, Water outlet
33) Washer, outlet to housing
(13/32"ID x 47/64" OD x 1/16")
34) Stud, Head to rocker arm
35) Spring, Valve
36) Shield, Valve stem oil
37) Seal, Intake/exhaust valve
       stem oil
38) Cap, Valve spring
39) Lock, Valve spring cap
40) Outlet, Water
41) Bolt, outlet to housing
       (3/8"-16 x 7/8")
42) Reinforcement, Rocker arm
       cover
43) Bolt, Rocker arm cover
       (1/4"-20 x 9/16")


1964-65/1970-75 6Cyl. Head
Illustrated Parts Break Down

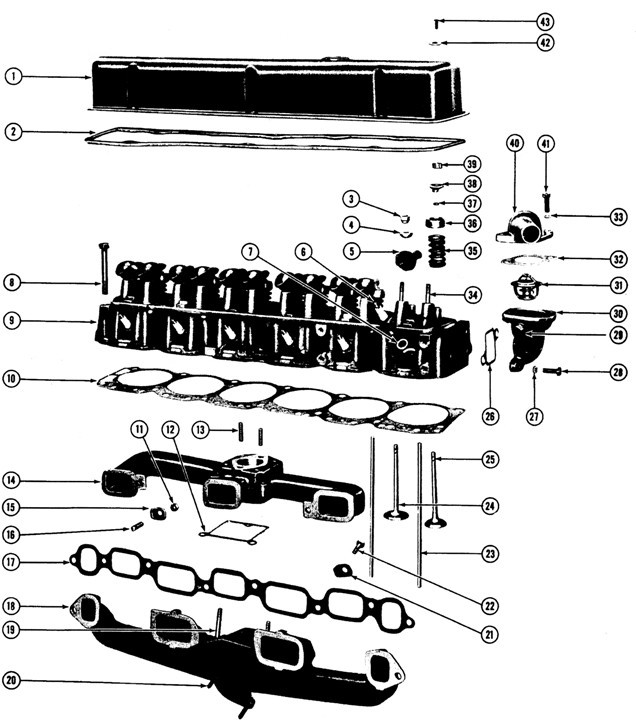

1964-65/1970-75 Pontaic 6Cyl. Head Exploded View


The illustrated parts break down illustrates individual part placement in the assembly.
