Illustrated Parts Break Down


  1) Outlet, Shroud center
       duct -LH
  2) Adapter, Air outlet duct
  3) Valve, Air side outlet
       lower duct
  4) Duct Assy., Air side outlet
       lower LH
  5) Washer, Air side outlet duct
       valve rod
       (3/16" I.D. x 3/8" O.D. x
       1/32" Flat)
  6) Nut, Air side outlet duct
       valve rod (5/32" push on
       spring type)
  7) Nut, Air side outlet bezel
       to retainer (8-18, J shape)
  8) Retainer, Air side outlet
       bezel
  9) Seal, Air side outlet bezel
10) Deflector, Air side outlet
11) Bezel, Air side outlet LH
12) Screw, Air Side outlet bezel
       to retainer
       (8-18 x 3/4" oval head)
13) Screw, Air Side outlet bezel
       to instrument panel
       (8-18 x 1/2" oval head)
14) Knob, Air side outlet duct
       valve control
15) Ferrule, Air side outlet
       duct control knob
16) Rod, air side outlet duct
       valve actuator
17) Rod, air side outlet duct
       valve
18) Washer, Air side outlet
       duct valve rod (5/8 " OD
       rubber)



68 Firebird Ventilation
Illustrated Parts Break Down

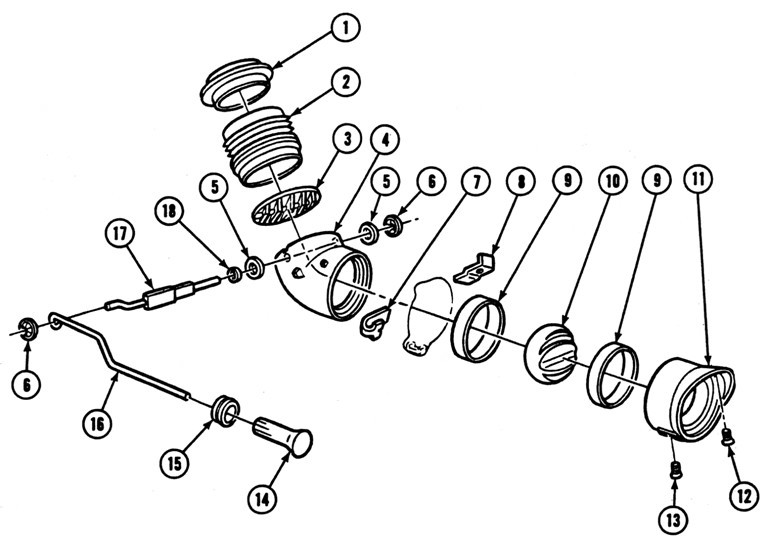

68 Firebird Ventilation Exploded View


The illustrated parts break down illustrates individual part placement in the assembly.
