Illustrated Parts Break Down


  1) Bracket, Console compt.
  2) Nut, Console compt. box
       to brkt. (8-18 "U" Shape)
  3) Screw, Console compt.
       box to mldg.
       (8-32 x 3/8" Pan Hd.)
  4) Screw, Console compt.
       box to brkt.
       (8-18 x 5/8" Oval HD)
  5) Harness, Inst. panel wire
  6) Molding, Console top
  7) Seal, Underbody trans.
       control lever
  8) Retainer, Underbody
       trans. control lever seal
  9) Cover, Underbody trans.
       control lever seal
10) Retainer, Trans.
       control lever Seal - L.H.
11) Seal, Trans. control lever
12) Plate, Trans. control
       lever hole trim
13) Screw, Trans. control
       lever trim plate Mtg.
       (8-32 x 5/8" Oval HD)
14) Retainer, Trans. control
       lever Seal - R.H
15) Screw, Trans. control
       lever Ret. to plate
       (18-32 x 5/16" Hex HD).
15) Screw, Automatic trans.
16) Seal, Trans. control
       lever and brkt
17) Retainer, Trans. control
       lever and brkt. Seal
18) Bulb, Trans. control
       indicator dial lamp
       (No. 1445)
19) Screw, Trans. control lever and brkt. Seal Ret. (8-32 x 5/8" Hex HD) 20) Retainer, Trans. control indicator Dial
21) Plate, Trans. control indicator Dial 22) Dial, Trans. control indicator 23) Plate, Trans. control lever hole trim - L.H. 24) Plate, Trans. control lever hole trim - R.H. 25) Seal, Trans. control lever 26) Retainer, Trans. control lever 27) Harness, Console compt. Wire 28) Arm, Console compt. door spring 29) Door, Console compt 30) Screw, Console compt. arm to Door (8-32 x 5/16" Pan HD) 31) Screw, Console compt. Hinge to Door (8-32 x 3/8" Pan HD) 32) Hinge assy., Console compt. Door 33) Bumper, Console compt. ash tray Door 34) Rivet, Console compt. Ash tray Door 35) Door, Console compt. Ash tray 36) Tray assy., Console compt. Ash 37) Screw, Console compt: box to Floor (5/16"-18 x 3/4" Truss HD) 38) Nut, Console compt. Ash tray Door 39) Nut, Console compt. Box to Floor (Spec.) . 40) Spring, Console compt. Ash tray Door 41) Screw, Rear Seat courtesy lamp lens (8-32 x 3/4" Oval HD) 42) Lens, Rear Seat courtesy lamp 43) Bulb, Rear Seat courtesy lamp (No. 212) 44) Console, Transmission floor 45) Spring, Console compt. Door 46) Harness, Console compt. Wire 47) Nut, Console compt. brkt. To floor 48) Screw, Console compt. bracket to floor (8-18 x 5/8" Oval HD) 49) Clip, Console compt. Wire harness



1967 Firebird Console
Illustrated Parts Break Down

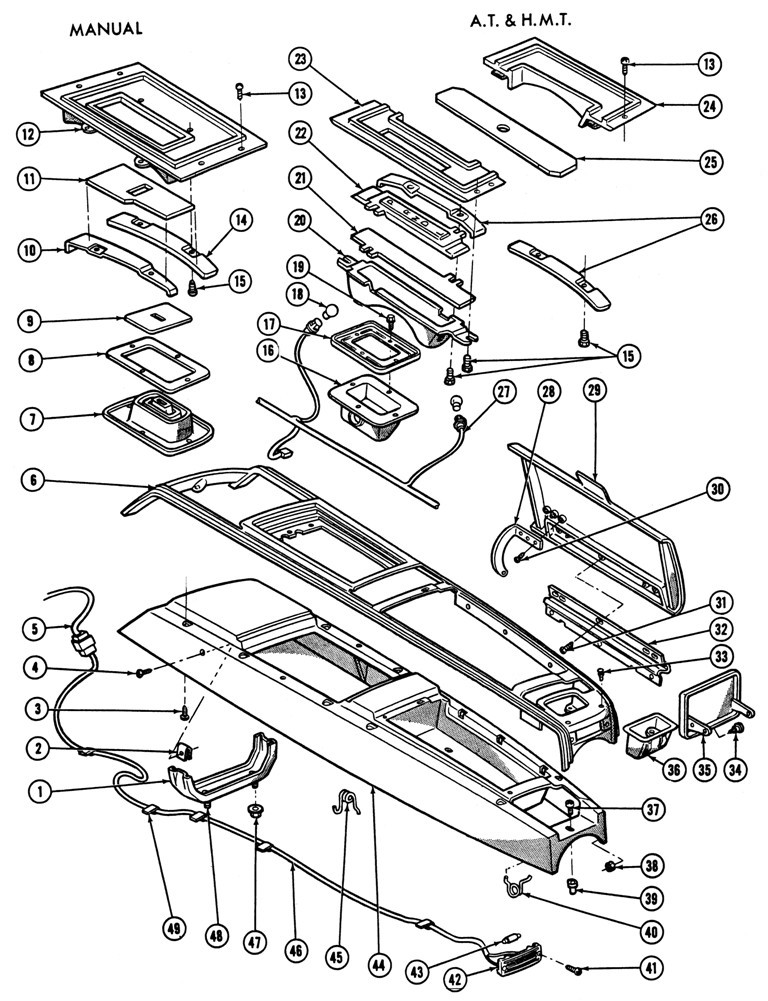

1967 Firebird Console Exploded View


The illustrated parts break down illustrates individual part placement in the assembly.
