Illustrated Parts Break Down


  1) Panel assy., Shroud upper
  2) Support, Windshield glass
  3) Panel assy., Shroud vent
       duct center
  4) Brace, Instrument panel
       to center duct
  5) Reinforcement, Shroud
       vent ctr. duct panel
       side -at windshield
  6) Fame assy., Windshield
       inner upper
  7) Rail assy., Front roof
  8) Panel assy., Dash
       (Inc. #60).
  9) Panel, Shroud Vent duct
       side
10) Reinforcement assy., Front
       body hinge pillar to duct
11) Panel assy., Front body
       hinge pillar
12) Reinforcement, Front body
       hinge pillar to rocker
13) Reinforcement, Wheelhouse
       inner panel (Part of #23)
14) Pan, Rear compartment
15) Lid assy., Rear
       compartment
16) Dampner assy., Body-rear
17) Support assy., Rear bumper
       inner
18) Support assy.,
       Compartment
       pan to rail dampener
19) Rail, Rear end cross
20) Filler, Compartment pan to
       quarter panel
21) Reinforcement assy.,
       Compartment pan at
       fuel tank
22) Rail assy., Rear
       compartment side
23) Brace assy., Folding top
       mounting support to
       wheelhouse (Part of #23).
24) Panel assy., Wheelhouse
       (Inc. #13-22-50-51-52)
25) Panel assy., Rear
       compartment - front
26) Pin, Compartment lid hinge
27) Strap, Compartment lid
       hinge
28) Support, Compartment
       lid hinge
29) Support assy., Spare tire
       clamp anchor plate
30) Reinforcement, Rear quarter
       outer panel - at belt
31) Brace, Body lock pillar to
       quarter panel
32) Gutter, Compartment lid
       side
33) Cover, Fuel tank filler
       neck tube protector
34) Neck assy., Fuel tank filler
35) Retainer, Fuel tank filler
       neck tube
36) Hose, Fuel tank filler
       neck tube protector
37) Plate, Compartment lid
       lock striker anchor
38) Pocket, Tail lamp opening
       (Part of #39)
39) Panel assy., Rear end
       (Inc. #37 & 42)
40) Door & Hinge, Fuel tank
       filler
41) Emblem, Fuel tank filler
       door
42) Retainer, Rear license
       plate (Part of #38) (1967)
43) Support, Rear bumper
44) Panel, Rear quarter
       side outer
45) Reinforcement, Body lock
       pillar
46) Reinforcement, Rocker
       outer panel - rear
47) Panel assy., Door opening
       rocker outer
48) Door assy., Front
       (Inc. #48)
49) Panel assy., Front door
       outer (Part of #47)
50) Panel, Shroud lower
51) Panel, Wheelhouse
       outer (Part of #23)
52) Panel, Rear quarter
       inner front (Part of #23)
53) Panel, Rear quarter
       inner rear (Part of #23)
54) Support, Folding top
       mounting
55) Brace, Body lock pillar
       to folding top mounting
       support
56) Filler, Rocker inner
       panel - rear
57) Bar assy., Compartment
       pan cross - front
58) Reinforcement, Floor
       pan at rear spring - front
59) Brace, Body lock pillar
       to floor pan
60) Reinforcement, Floor panel
61) Panel, Rocker inner
62) Brace assy., Dash to engine
       mount rail (Part of #61)
63) Panel assy., Instrument
64) Brace, Top compartment
       side panel - lower
65) Brace, Top Compartment
       side panel - upper
66) Pan, Floor



1967-69 Firebird Convertible Body Sheet Metal
Illustrated Parts Break Down

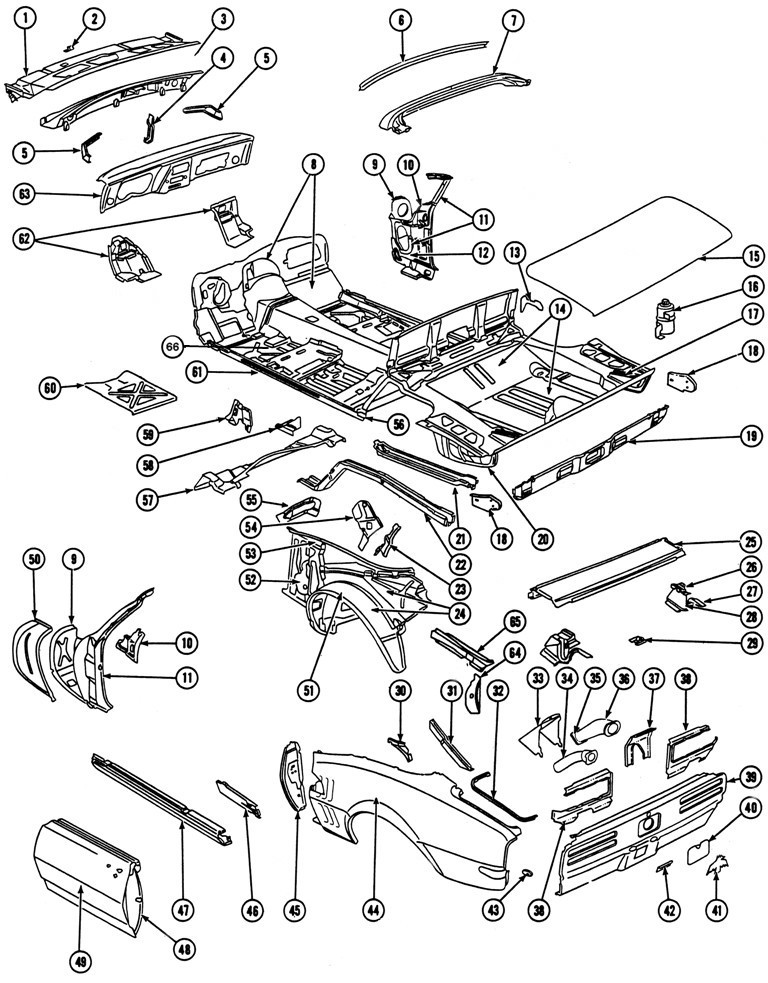

1967-69 Firebird Convertible Body Sheet Metal Exploded View


The illustrated parts break down illustrates individual part placement in the assembly.
